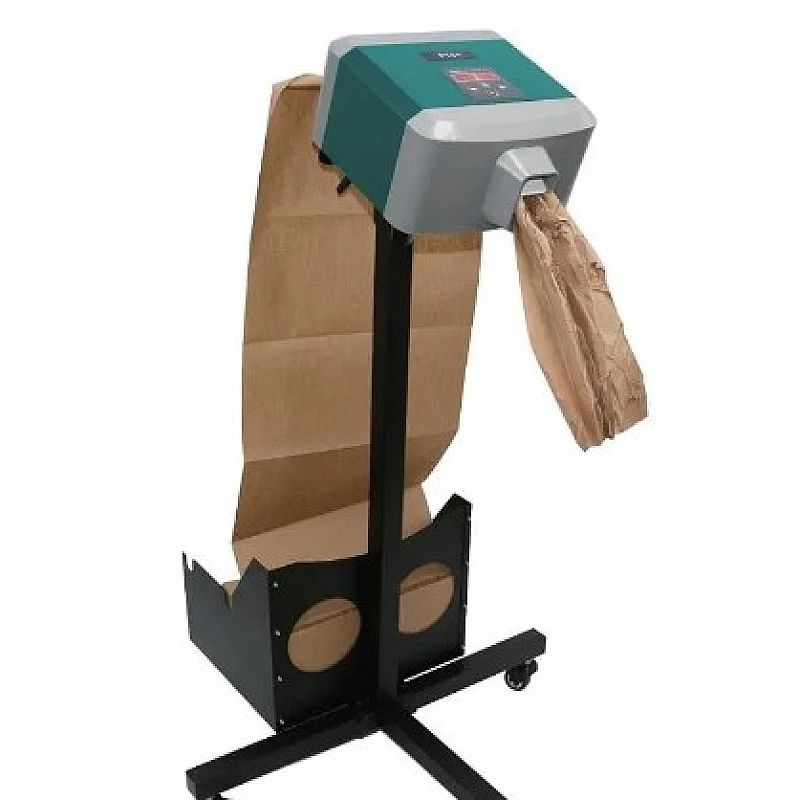

Automatic Void Fill Machine S 150W 70m/min

Protective Packaging Solutions: Automatic Kraft Paper Void Fill Dispenser & Paper Cushioning Machines

Specifications

• Cushioning System Dimensions:
  • Core Module: 450x245x150mm
  • Assembly: 520x480x1900mm
• Operating Speed: Up to 70m/min
• Height Adjustment: 150cm to 190cm
• Feeding Head Angle: Adjustable for versatile application
• Operation Modes: Can be used in Floor Stand Mode or Desktop Mode
• Voltage Compatibility: 110-240V
• Power Consumption: Maximum 150W

Compatible Paper Consumables:

• Single Layer Kraft Paper Roll: 70g, 380mm x 300m
• Folded Void Fill Paper: 70g, 380mm x 190mm x 500m

Three Operational Modes:

1. Automatic Mode: Pre-set the paper length and output quantity for automatic dispensing.
2. Compensation Mode: Adjust output to "_ _ _" for on-demand paper dispensing—take one, get one.
3. Pedal Mode: Use the foot pedal for continuous paper dispensing; release to stop and cut the paper.

Available Paper Types:

1. Kraft Honeycomb Paper
2. Kraft Void Fill Paper Rolls
3. Folded Void Fill Paper

Adjustable Head Angle:

• Tailor the angle to meet the needs of various applications and work environments.

Safety Features:

• Emergency Stop Button: Quickly halt operations in case of paper jams.
• Adjustable Support Height: Adaptable to different working heights.
• Anti-Skid Roller Bracket: Ensures stability, preventing unwanted movement.
